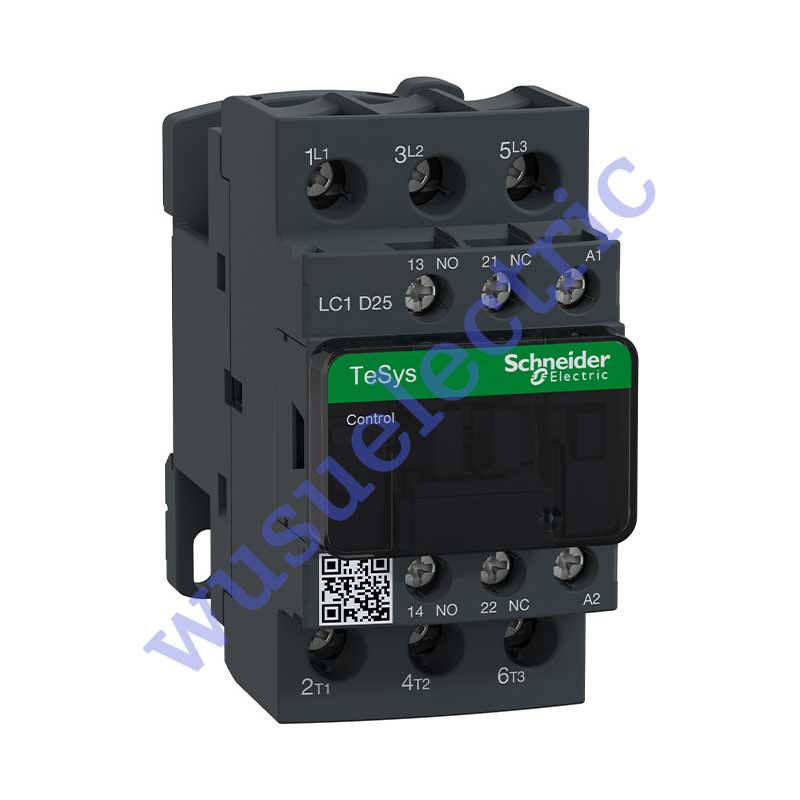

Schneider LC1D25F7 IEC contactor

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW@400V). They can be used to create motor starters for almost any type of application. It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 7.5HP at 200-208VAC, 7.5HP at 240VAC, 15HP at 480VAC and 20HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 60A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 110 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.82 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Advantage Products

FAQ

1.Q:Other suppliers have a better price than yours?

A: ''To create the greatest benefit for clients'' is our belief, if you have a better price, please let Wusu know. We will try the best to meet your target price and support you.

2.Q:What's the delivery time ?

A: Normally we have enough stock for regular models(such as PLC FX3U-64MR/ES-A ) and we can deliver immediately at the same day after payment received. For some products that is not in stock, we normally deliver within one week.

3.Q:What is the standard of package?

A: Export standard package or special package according to customer requirement.

4.Q: Could Wusu provide technology support?

A: We're in this field for more than 15 years and we have our own technical team. Our engineer could give suggestion and help to solve the problem if there's any problem.

5.Q:Does Wusu keeps goods in stock or only trading?

A: We have warehouses in Guangzhou and HongKong and keep large stock of goods in it, that's how we promise fast delivery.

All products are covered by the Wusu Industrial Automation Company's 1 Year Warranty. Manufacturer's Warranty does not apply.

 Refund and replacement

1. Please contact us within 7 days if you have any question after you receiving the items.

2.The returned items has to be in its original condition, specific reason for the return, we will

issue a return or replacement for your order after we received the returns.

3.The buyer is responsible for all the shipping cost incurred.
